SVERO
Art no. 1522
Lever Hoist 9000 kg, lift 1,5 m
Lever hoist 9000 kg from Svero for really heavy lifting and pulling/tightening during, for example, installations of large machines.
19 893 SEK
Excl. VATOrder item
–
+
Manual
Print Description
- can be ordered with adapted lifting height
- fits most beam trollies and beam clamps
- 0.5-9 tons can be obtained with overload protection
- powder-coated housing in steel provides very good rust protection
- swivelling hooks with safety locks
- safe, well protected, automatic load pressure brake
- load chain treated with COROLIM® provides excellent corrosion protection
- working temperature -10° C up to +50° C
- traceable with unique SVERO serial number
- each lever hoist is dynamically test loaded with 1.5 x WLL before leaving production
- test and CE certificates and manual included
Specifications
Art no.
1522
WLL
9000 kg
Test load
13500 kg
Safety factor
4:1
Standard lift
1.5 m
Falls
3 st
Load chain
10 X 28 mm
Weight, net
49 kg
Marking
CE, WLL
Standard
SS-EN 13157
Brand
SVERO

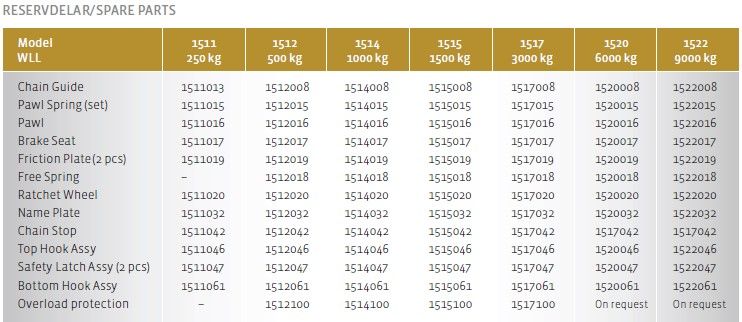

Accessories/spare parts
