SVERO
Art no. 1419900

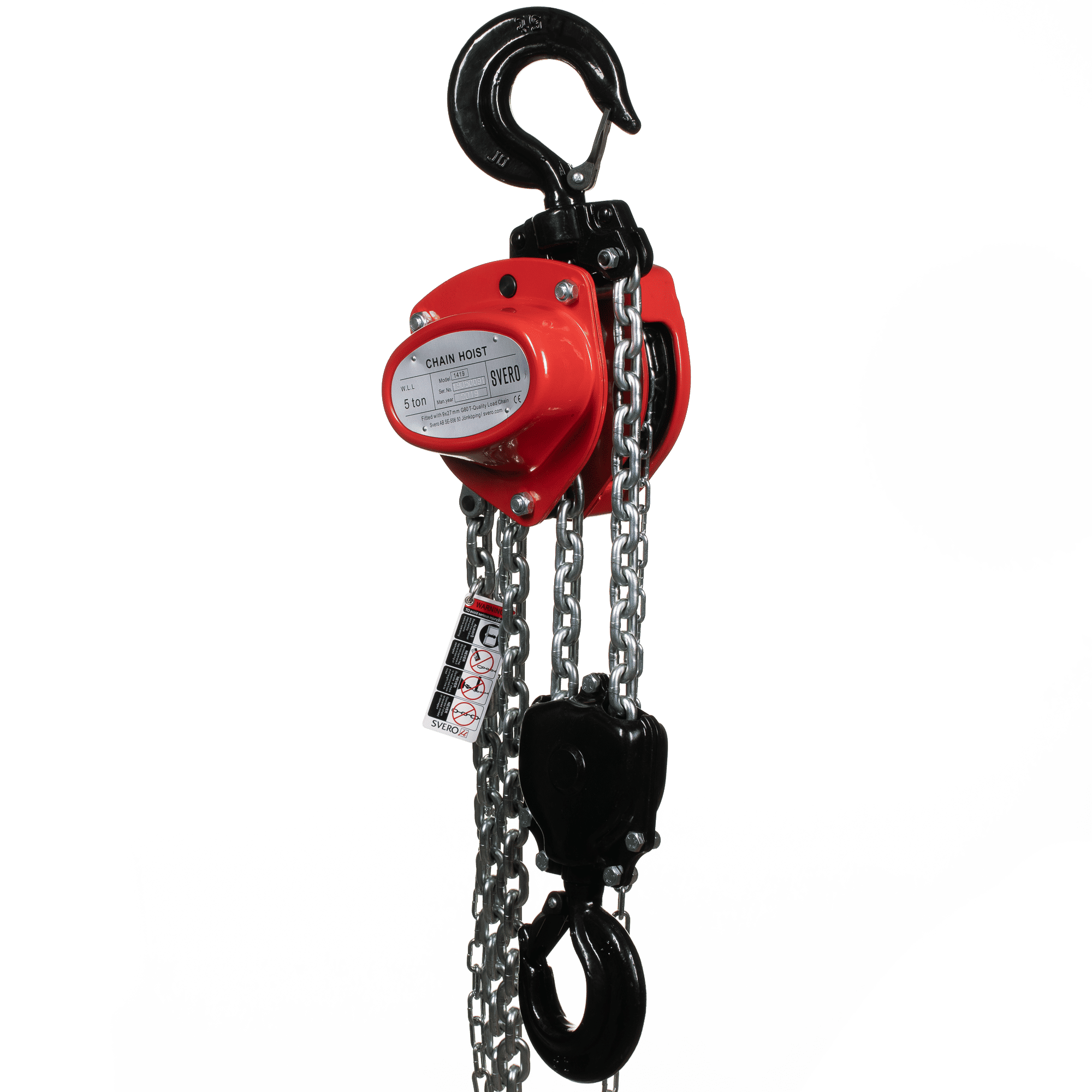

CHAIN HOIST, 14, 5000KG, OP, LH:3,0M
Chain hoist 5000 kg with overload protection from Svero for really heavy lifting in, for example, the process industry and energy generation.
10 223 SEK
Excl. VATOrder item
Manual
Print Description
- can be ordered with adapted lifting and/or operating height
- fits most beam trollies and beam clamps
- 0.5-20 tons can be obtained with overload protection
- powder-coated housing in steel provides very good rust protection
- swivelling hooks with safety latch
- safe, well protected, automatic load pressure brake
- load chain treated with COROLIM® provides excellent corrosion protection
- double layers on the chain link ensure perfect balance and smooth running
- working temperature -10° C up to +50° C
- traceable with unique SVERO serial number
- each chain hoist is dynamically test loaded with 1.5 x WLL before leaving production
- test and CE certificates and manual included
Specifications
Art no.
1419900
WLL
5000
Test load
7500
Safety factor
4:1
Standard lift
3
Standard maneuver chain
3
Falls
2
Load chain
9 X 27
Hand chain
5 X 23.7
Weight, net
37
Marking
CE, WLL
Standard
SS-EN 13157
Brand
SVERO
