SVERO
Art no. 1423900

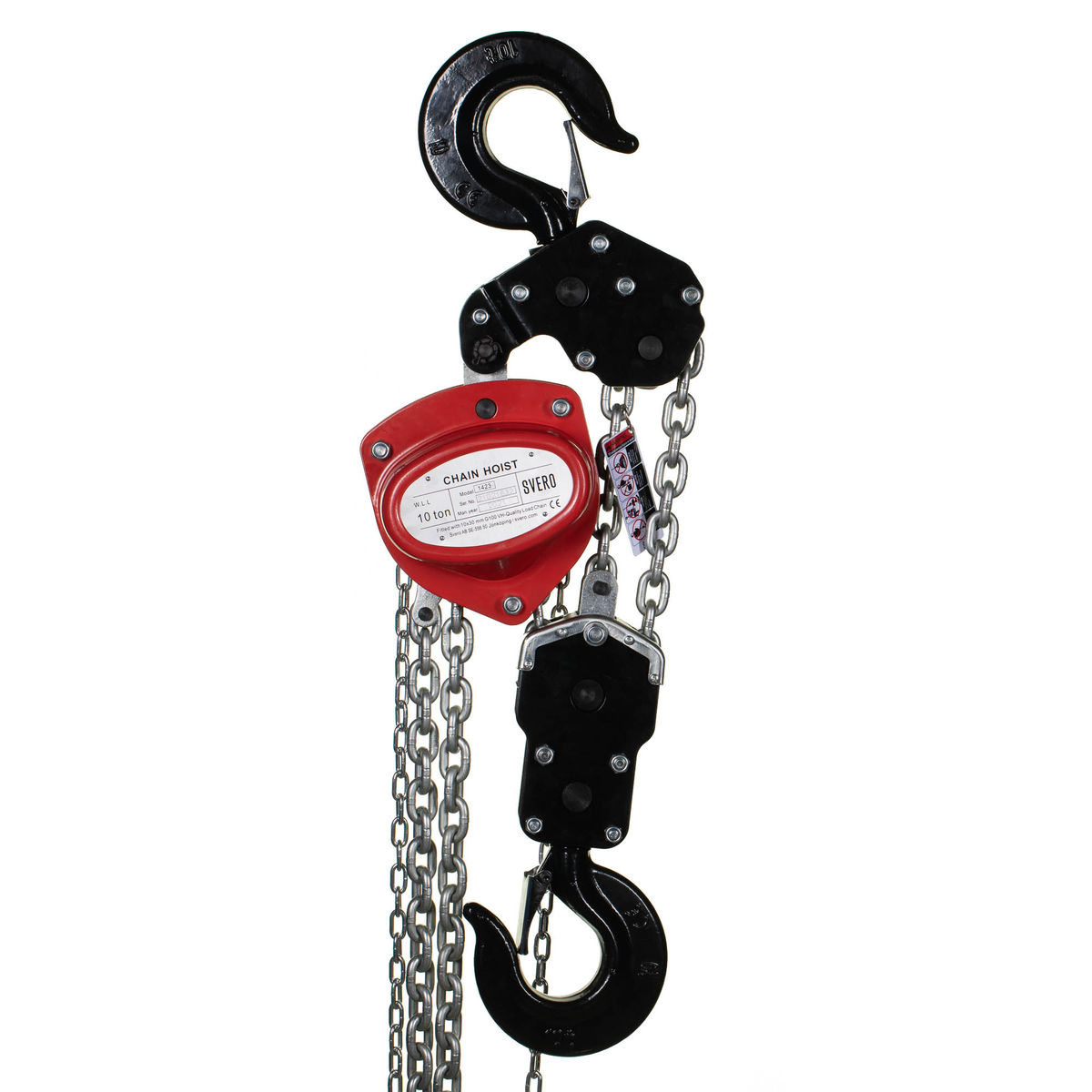

CHAIN HOIST, 14, 10000KG, OP, LH:3,0M
Chain hoist 10 000 kg with overload protection from Svero for really heavy lifting in, for example, installations of large machines.
20 945 SEK
Excl. VATIn stock
–
+
Manual
Print Description
- can be ordered with adapted lifting and/or operating height
- fits most beam trollies and beam clamps
- 0.5-20 tons can be obtained with overload protection
- powder-coated housing in steel provides very good rust protection
- swivelling hooks with safety latch
- safe, well protected, automatic load pressure brake
- load chain treated with COROLIM® provides excellent corrosion protection
- double layers on the chain link ensure perfect balance and smooth running
- working temperature -10° C up to +50° C
- traceable with unique SVERO serial number
- each chain hoist is dynamically test loaded with 1.5 x WLL before leaving production
- test and CE certificates and manual included
Specifications
Art no.
1423900
WLL
10000
Test load
15000
Safety factor
4:1
Standard lift
3
Standard maneuver chain
3
Falls
3
Load chain
10 X 30
Hand chain
5 X 23.7
Weight, net
64.6
Marking
CE, WLL
Standard
SS-EN 13157
Brand
SVERO
