SVERO
Art no. 2617
Integrated very low-build chain hoist/trolley 3200 kg

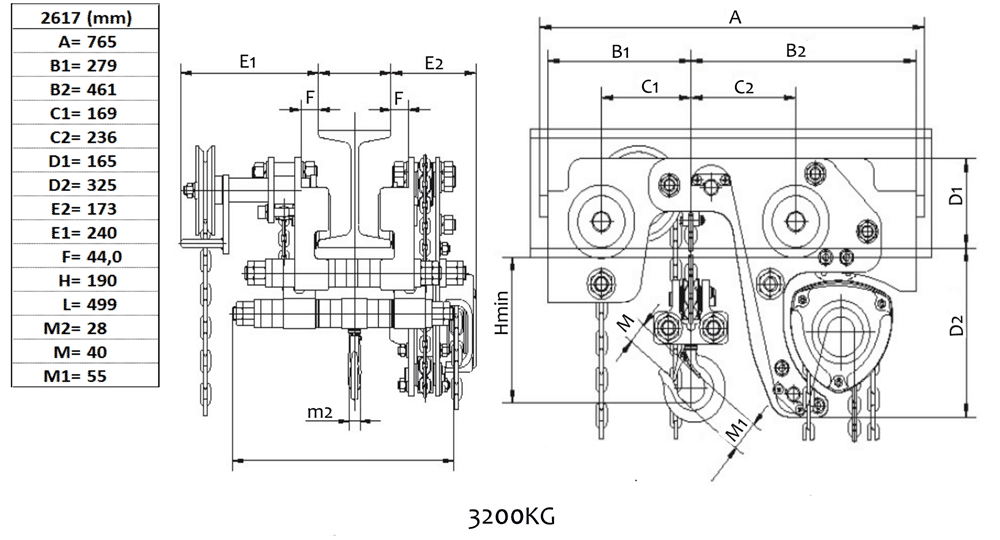

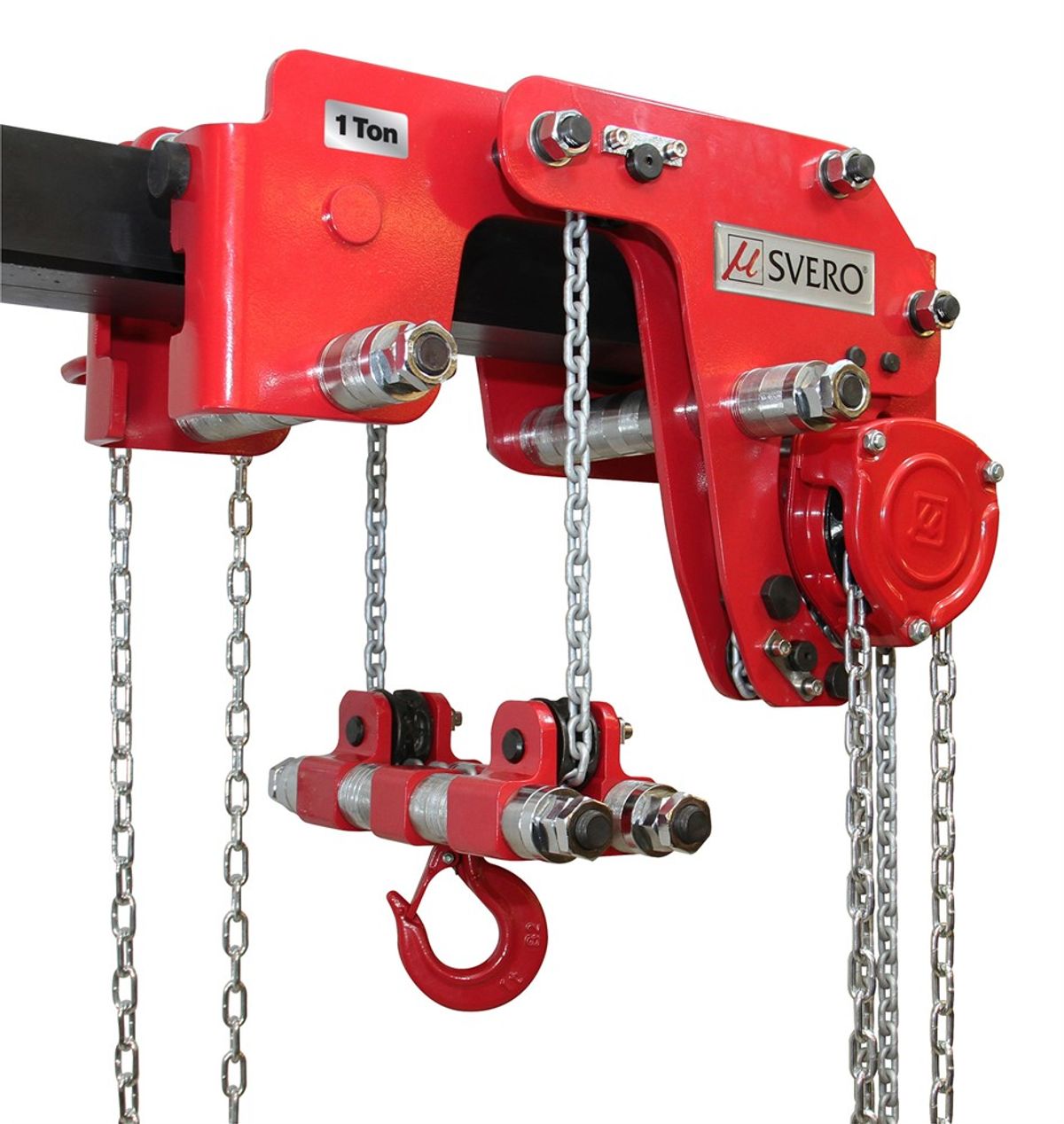

SVERO 26 is an extremely low-built and manually chain-driven beam trolley with an integrated chain hoist. From the underside of the beam to the load position on the hook, the distance, depending on capacity, is only 135-235 mm. All models are available with adapted chain length on both the beam trolley and the lifting block.
46 639 SEK
Excl. VATOrder item
Manual
Print Description
- low headroom
- adjustable for IPE, HEA, HEB or INP beams
- powder-coated steel sides
- width is adjusted with spacers
- lockable in parking mode
- rubber shock absorbers
- test loaded with 1.5 x WLL
- safety factor 4:1
- working temperature -10° C up to +50° C
- test and CE certificates and manuals included
- traceable with unique SVERO serial number
Specifications
Art no.
2617
WLL
3200
Beam width mm
103-223
Headroom (Hmin)
190
Test load
4800
Safety factor
4:1
Standard lift
3
Standard maneuver chain
3
Weight, net
181
Marking
CE, WLL, BEAM WIDTH
Standard
SS-EN 13157
Brand
SVERO
