SVERO
Art no. 2616

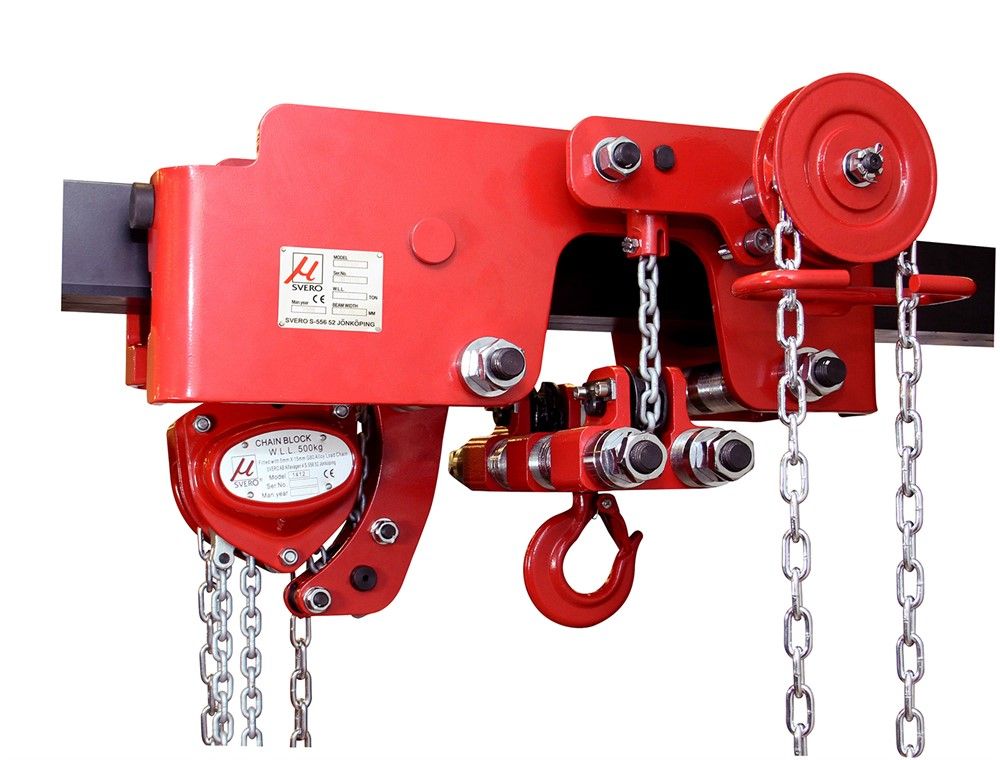

Integrated very low-build chain hoist/trolley 2000 kg
SVERO 26 is an extremely low-built and manually chain-driven beam trolley with an integrated chain hoist. From the underside of the beam to the load position on the hook, the distance, depending on capacity, is only 135-235 mm. All models are available with adapted chain length on both the beam trolley and the lifting block.
40 713 SEK
Excl. VATOrder item
–
+
Manual
Print Description
- low headroom
- adjustable for IPE, HEA, HEB or INP beams
- powder-coated steel sides
- width is adjusted with spacers
- lockable in parking mode
- rubber shock absorbers
- test loaded with 1.5 x WLL
- safety factor 4:1
- working temperature -10° C up to +50° C
- test and CE certificates and manuals included
- traceable with unique SVERO serial number

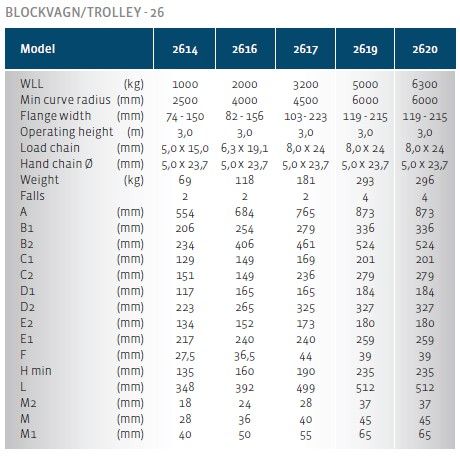

Specifications
Art no.
2616
WLL
2000
Beam width mm
82-156
Headroom (Hmin)
160
Test load
3000
Safety factor
4:1
Standard lift
3
Standard maneuver chain
3
Weight, net
118
Marking
CE, WLL, BEAM WIDTH
Standard
SS-EN 13157
Brand
SVERO
