SVERO
Art no. 2714

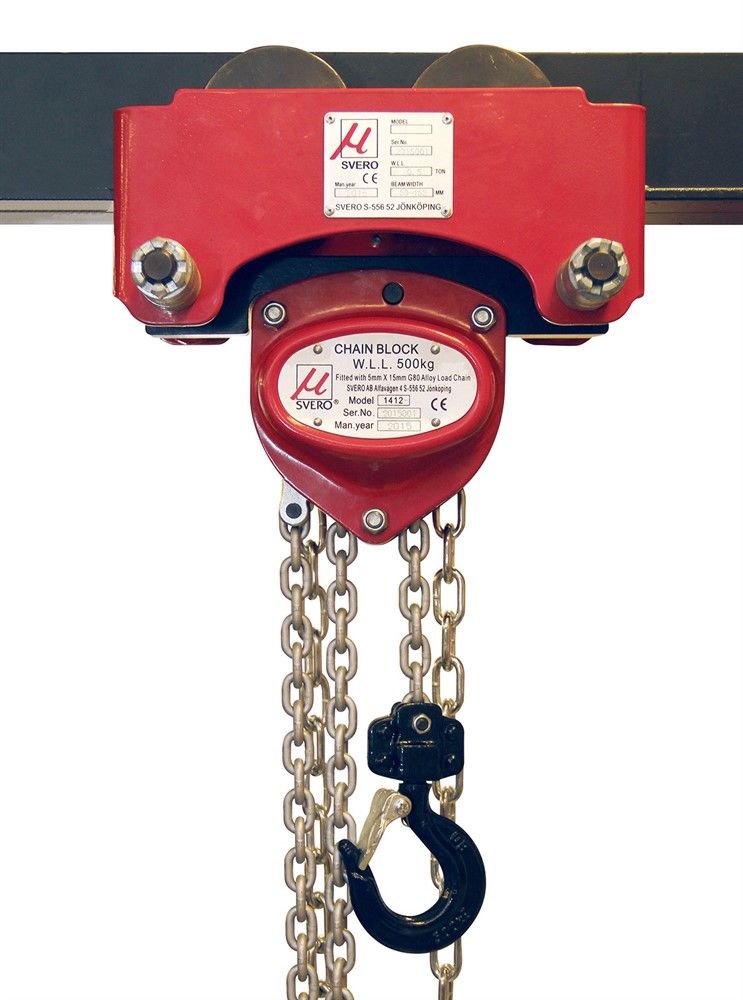

Integrated low-build chain hoist/trolley 1000 kg
SVERO 27 is a low-built beam trolley with an integrated chain hoist. From the underside of the beam to the load position, the distance, depending on capacity, is only 235-275 mm. Available with adapted lifting height.
7 272 SEK
Excl. VATOrder item
–
+
Manual
Print Description
- low headroom
- adjustable for IPE, HEA, HEB or INP beams
- powder-coated steel sides
- width is adjusted with spacers
- rubber shock absorbers
- test loaded with 1.5 x WLL
- safety factor 4:1
- working temperature -10° C up to +50° C
- test and CE certificates and manuals included
- traceable with unique SVERO serial number

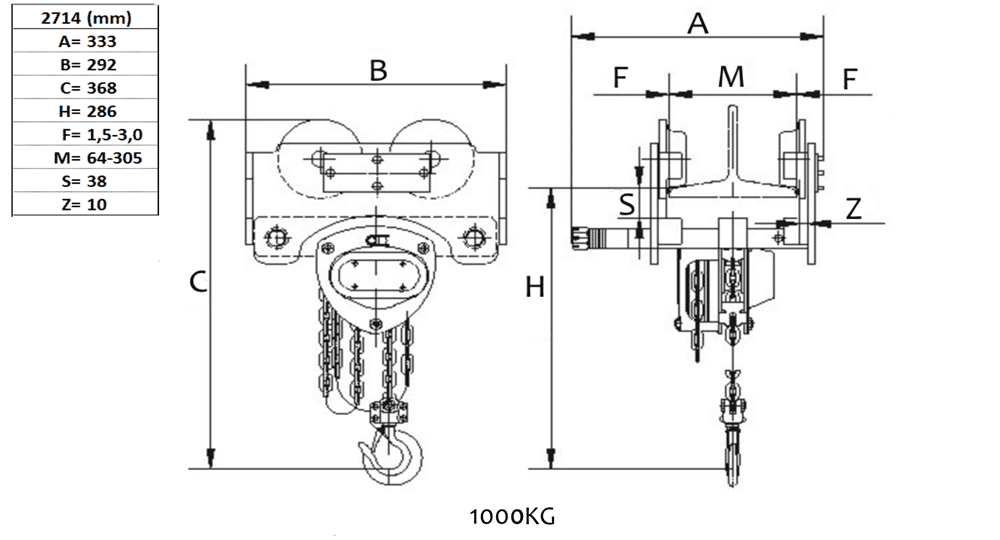

Specifications
Art no.
2714
WLL
1000
Beam width mm
64-305
Headroom (Hmin)
286
Test load
1500
Safety factor
4:1
Standard lift
3
Standard maneuver chain
3
Load chain
6,3 X 19
Hand chain
5 X 23,7
Weight, net
15
Marking
CE, WLL, BEAM WIDTH
Standard
SS-EN 13157
Brand
SVERO
