Start / Products / BLOCK WAGON! / Beam trolley, Geared, 20000KG, 220-300MM /
Beam trolley, Geared, 20000KG, 220-300MM-image-1 Beam trolley, Geared, 20000KG, 220-300MM-image-2
SVERO

Beam trolley, Geared, 20000KG, 220-300MM

Art no. 21274

Our new SVEROs chain-driven beam trolley 20,000 kg. For extremely heavy needs in industry and infrastructure. For example for service and maintenance of larger machines.

3 105 EUR

Excl. VAT
Order item
Send quotation request
Manual
Print
If you have questions Contact us

Description

    • can be moved simply and easily using the hand chain
    • can be ordered with adapted operating height
    • fits most chain hoists, both manual and electrical
    • fits IPE, HEA, HEB and INP beams
    • powder-coated steel sides
    • adjustable left and right threaded suspension bolt
    • test loaded with 1.5 x WLL
    • working temperature -10° C up to +50° C
    • test and CE certificates and manual included
    • traceable with unique SVERO serial number

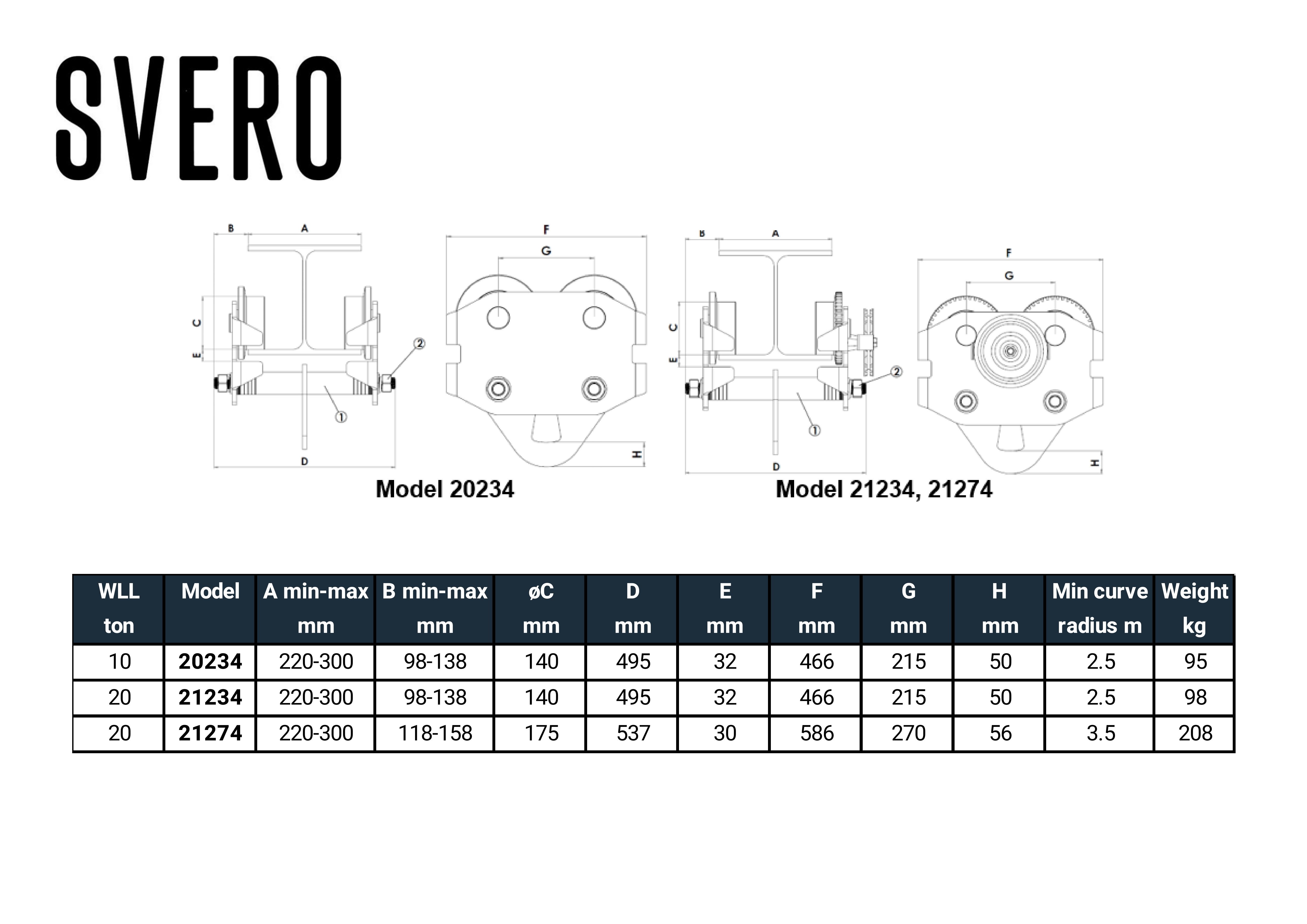

Specifications

Art no.
21274
WLL
20000 kg
Beam width
220-300 mm
Test load
30000 kg
Safety factor
4:1
Standard maneuver chain
3 m
Weight, net
208 kg
Marking
CE, WLL, BEAM WIDTH
Standard
SS-EN 13157
Brand
SVERO
