SVERO
Art no. 20124A

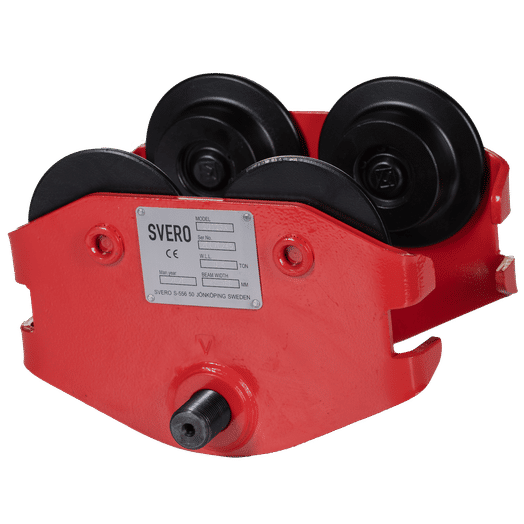

Beam Trolley 500 kg, 161-280 mm
SVEROs 500 kg extra wide beam trolley. The low-built 3-part construction is easy to assemble. Too little special situations when you do not have to lift so much, but have a wide beam.
2 010 SEK
Excl. VATIn stock
–
+
Manual
Print Description
- fits most chain hoists, both manual and electrical
- fits IPE, HEA, HEB and INP beams
- powder-coated steel sides
- adjustable left and right threaded suspension bolt
- test loaded with 1.5 x WLL
- working temperature -10° C up to +50° C
- test and CE certificates and manual included
- traceable with unique SVERO serial number
Specifications
Art no.
20124A
WLL
500
Beam width mm
161-280
Test load
750
Safety factor
4:1
Min. curve radius
1,0 m
Weight, net
6.4
Marking
CE, WLL, BEAM WIDTH
Standard
SS-EN 13157
Brand
SVERO
