SVERO
Art no. 21174A

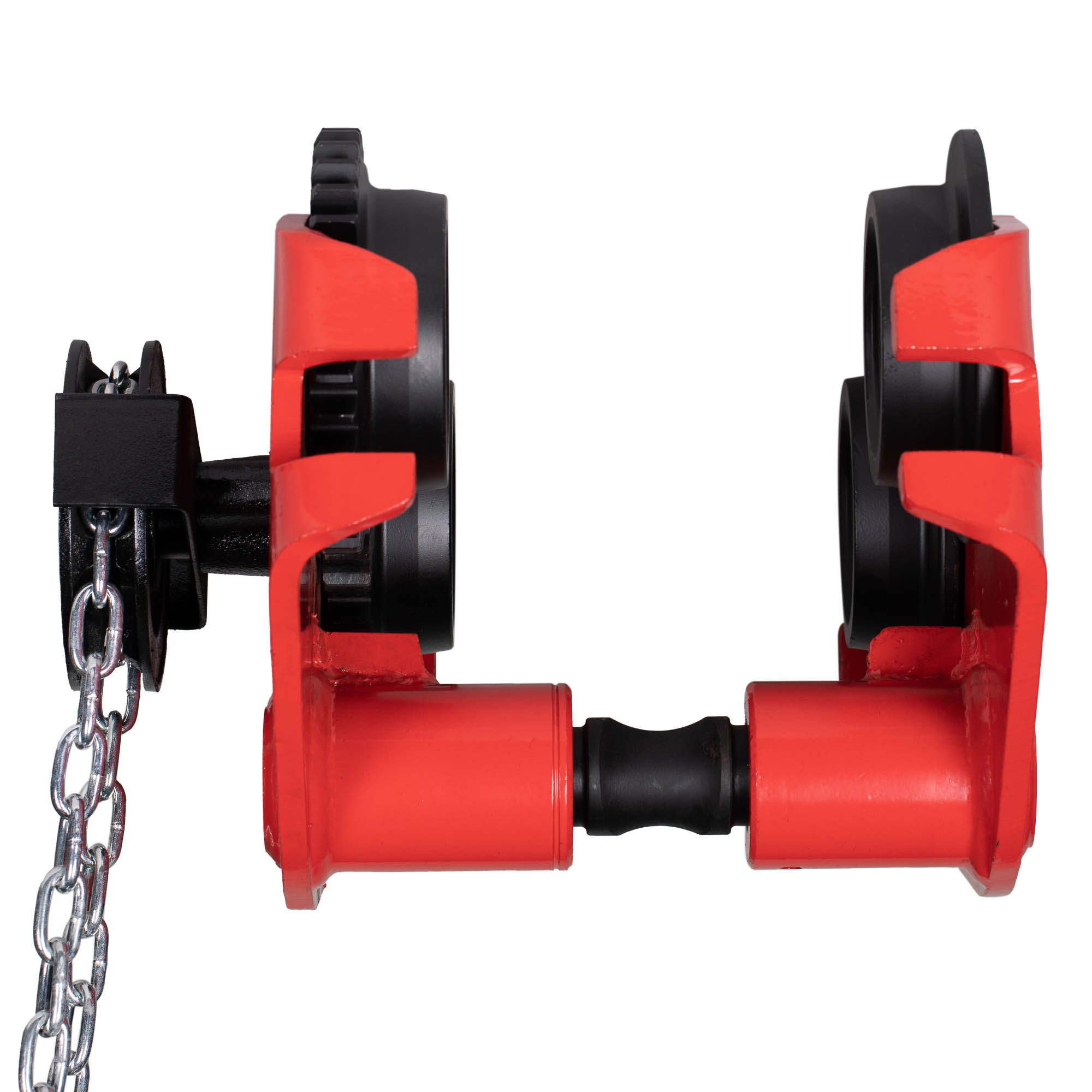

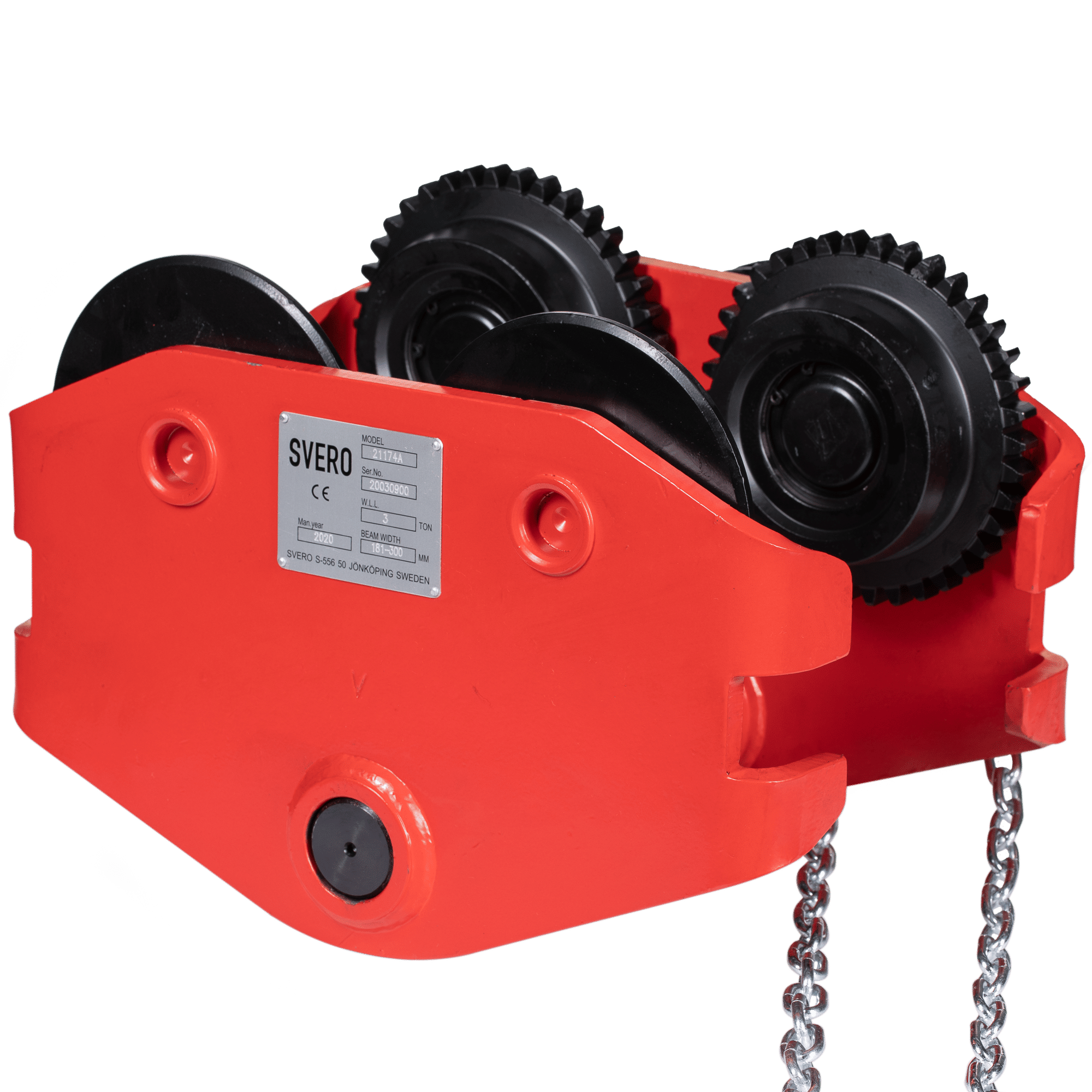

Beam Trolley 3000 kg geared, maneuvre 3 m, wide
SVEROs extra wide geared beam trolley 3000 kg. For heavier industry, where the beams are often a little wider, and for example for maintenance and service of larger machines. Suitable for situations when you need more precise control of the movement. The low-built 3-part design is easy to assemble.
925 SEK
Excl. VATIn stock
–
+
Manual
Print Description
- can be moved simply and easily using the hand chain
- can be ordered with adapted operating height
- fits most chain hoists, both manual and electrical
- fits IPE, HEA, HEB and INP beams
- powder-coated steel sides
- adjustable left and right threaded suspension bolt
- test loaded with 1.5 x WLL
- working temperature -10° C up to +50° C
- test and CE certificates and manual included
- traceable with unique SVERO serial number
Specifications
Art no.
21174A
WLL
3000 kg
Beam width
181-300 mm
Test load
4500 kg
Safety factor
4:1
Standard maneuver chain
3 m
Hand chain
5,0X23,7 mm
Weight, net
39 kg
Marking
CE, WLL, BEAM WIDTH
Standard
SS-EN 13157
Brand
SVERO
