SVERO
Art no. 21173A

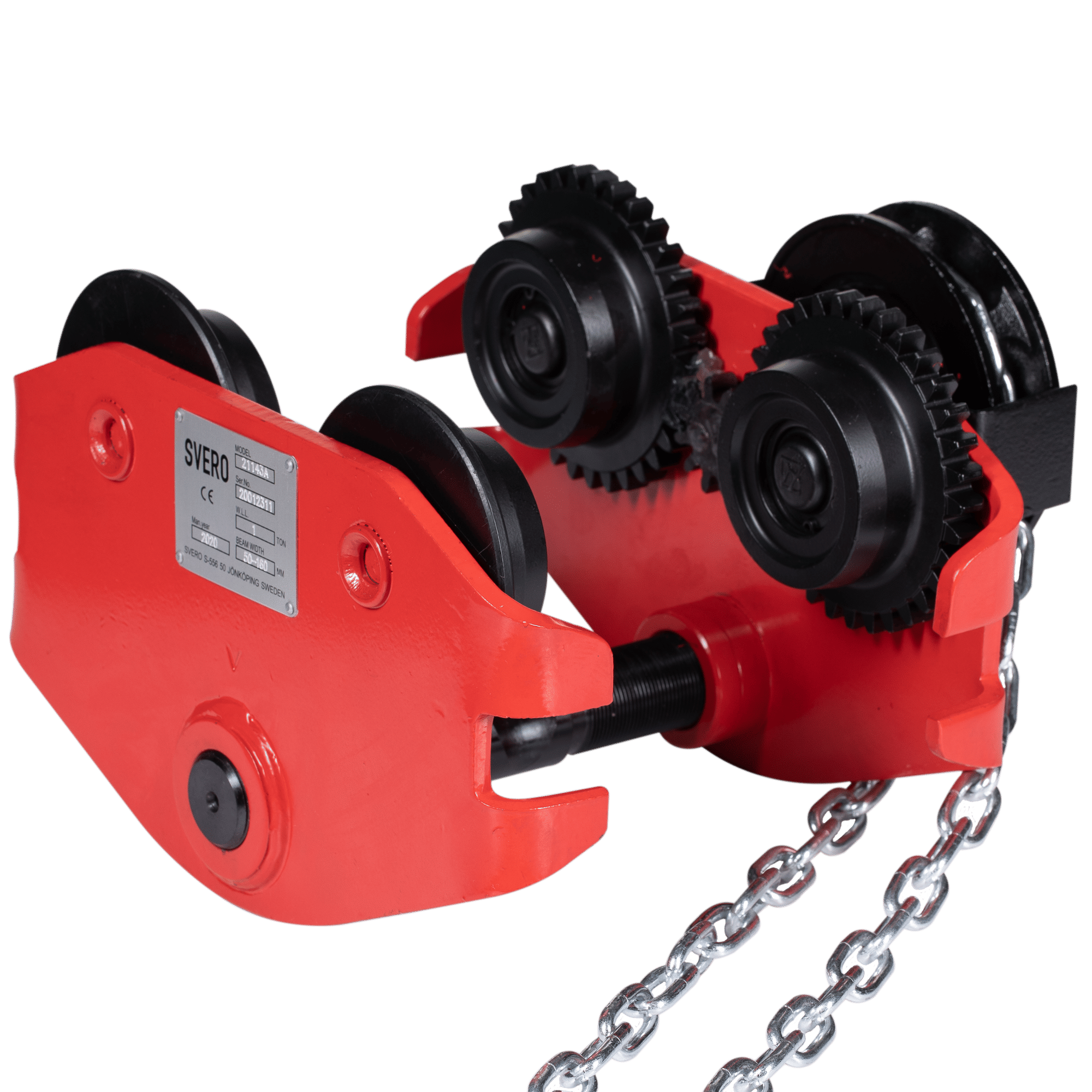

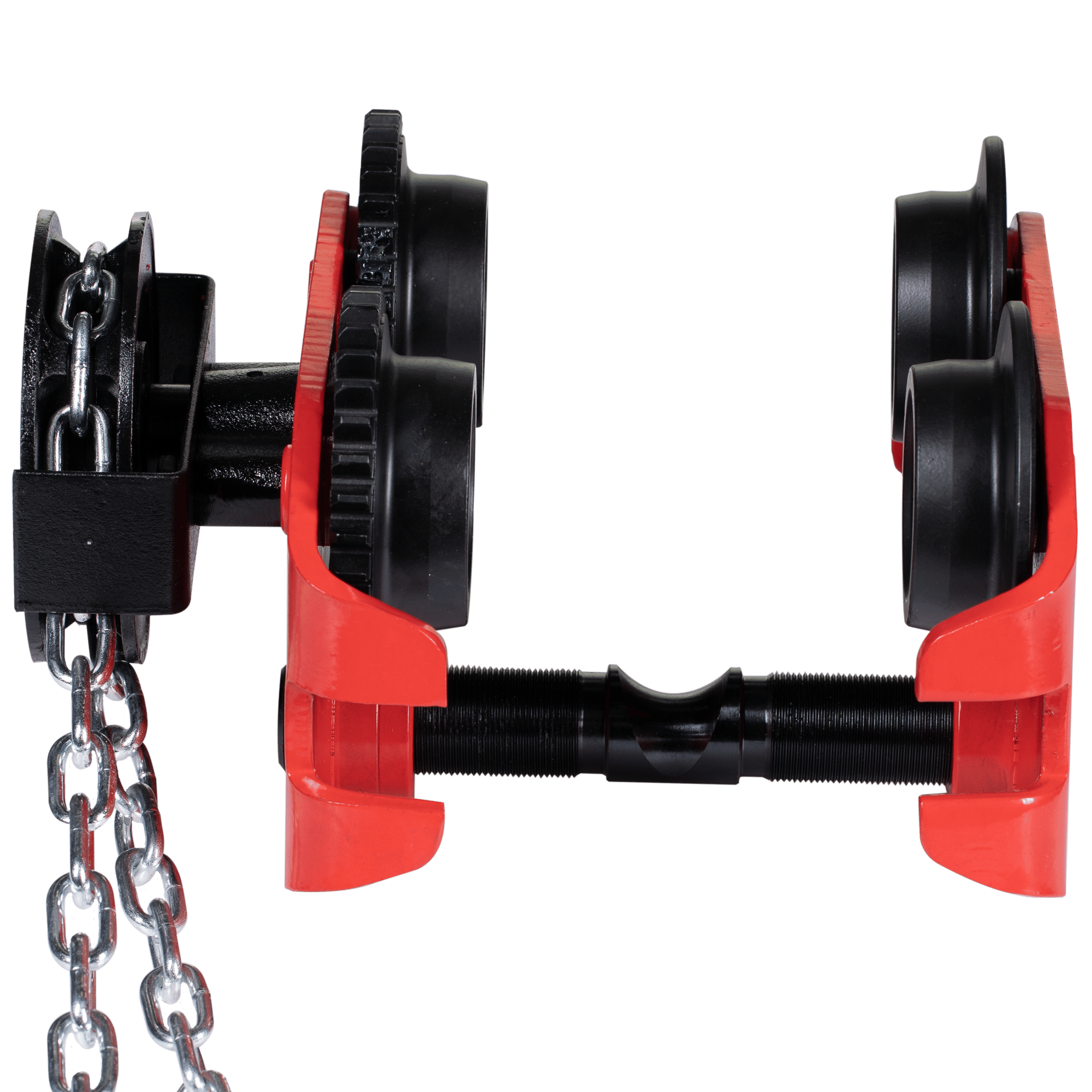

Beam Trolley 3000 kg geared, maneuvre 3 m
SVEROs geared beam trolley 3000 kg. For heavier industry and, for example, for maintenance and service of larger machines. Suitable for situations when you need more precise control of the movement. The low-built 3-part design is easy to assemble.
9 144 SEK
Excl. VATIn stock
–
+
Manual
Print Description
- can be moved simply and easily using the hand chain
- can be ordered with adapted operating height
- fits most chain hoists, both manual and electrical
- fits IPE, HEA, HEB and INP beams
- powder-coated steel sides
- adjustable left and right threaded suspension bolt
- test loaded with 1.5 x WLL
- working temperature -10° C up to +50° C
- test and CE certificates and manual included
- traceable with unique SVERO serial number

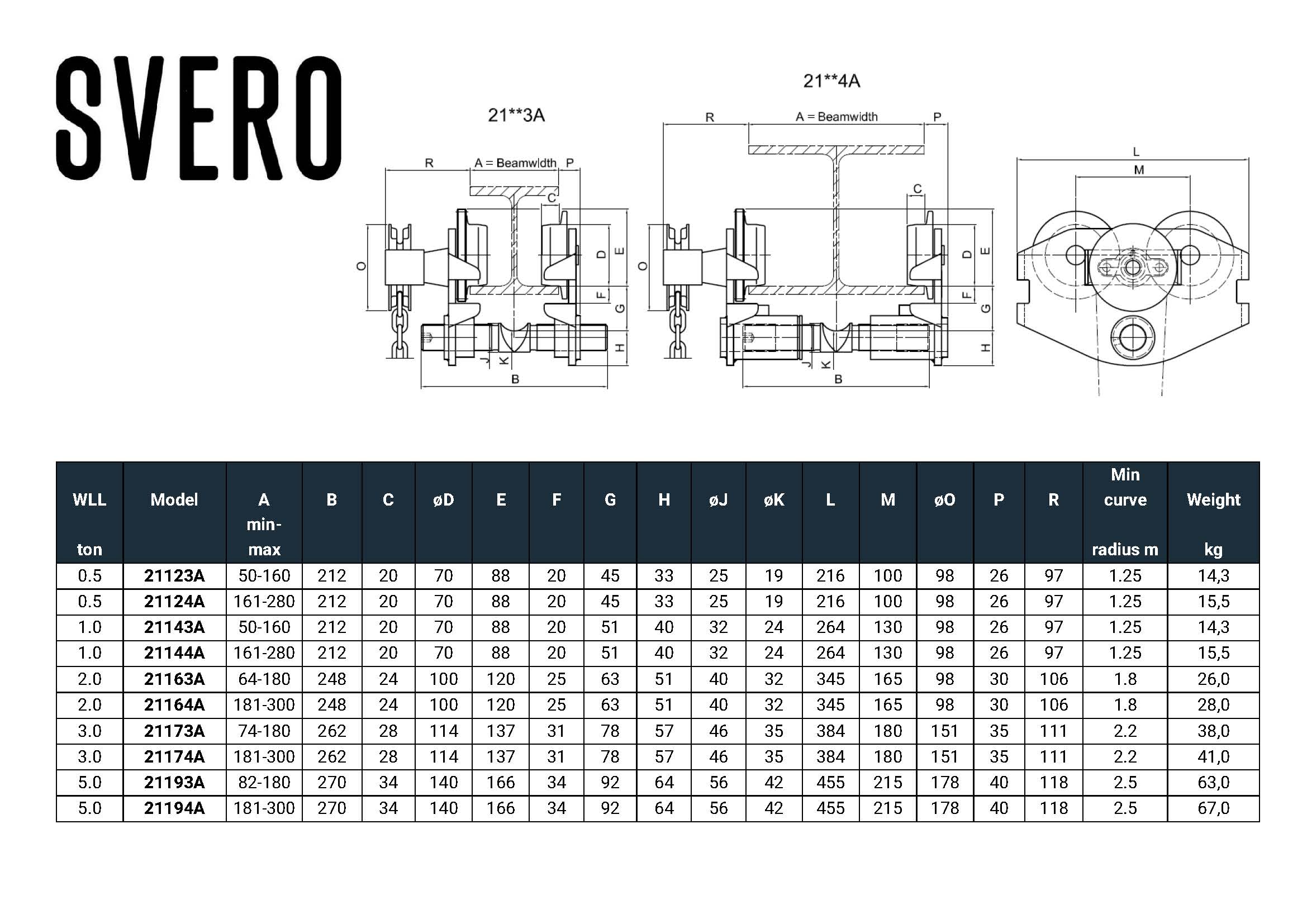

Specifications
Art no.
21173A
WLL
3000
Beam width mm
74-180
Test load
4500
Safety factor
4:1
Standard maneuver chain
3
Hand chain
5,0X23,7
Weight, net
36
Marking
CE, WLL, BEAM WIDTH
Standard
SS-EN 13157
Brand
SVERO
