Start / Products / Beam clamps / Beam clamps / Beam Clamp 5000 kg, 90-330 mm /

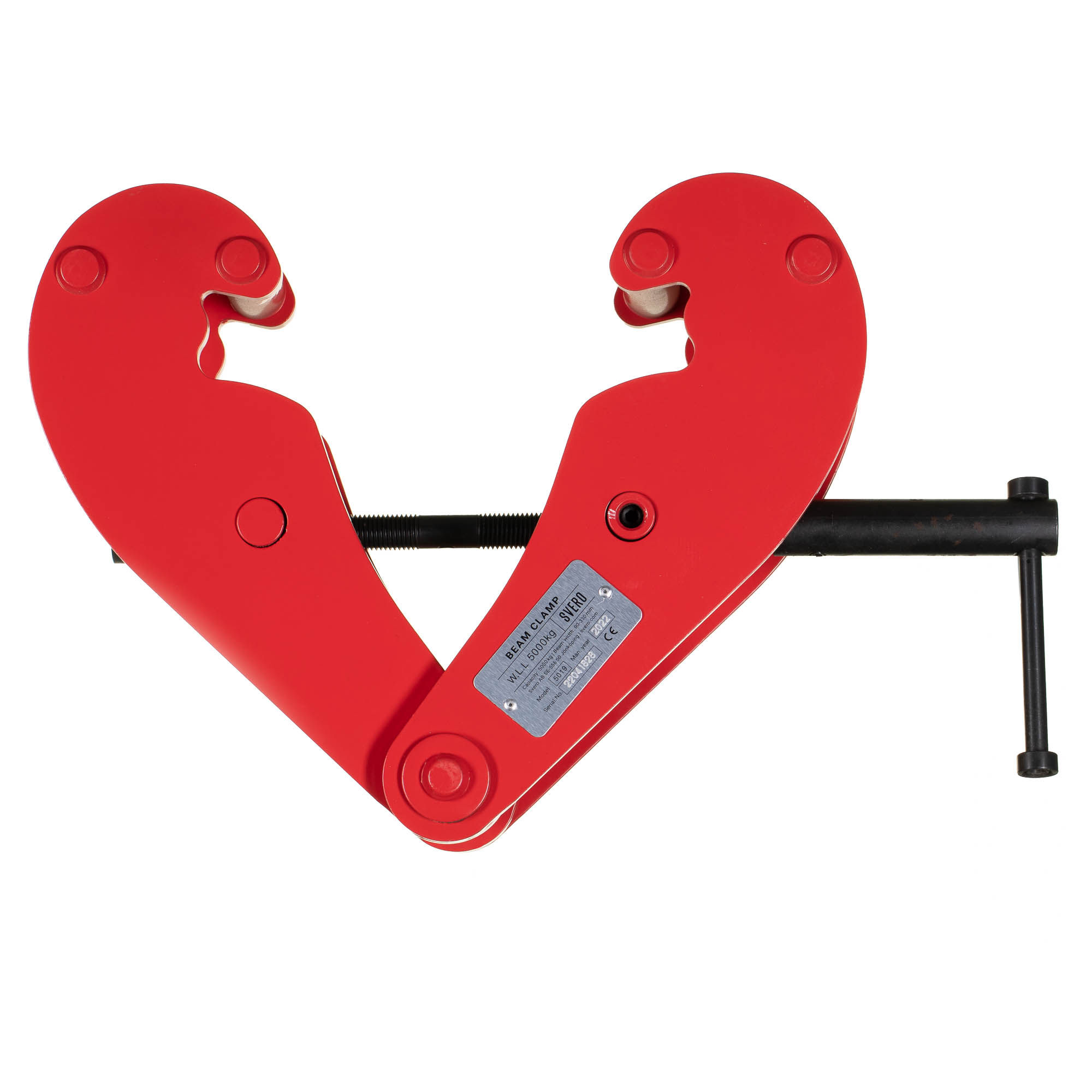

Beam Clamp 5000 kg, 90-330 mm-image-1 Beam Clamp 5000 kg, 90-330 mm-image-2
SVERO

Beam Clamp 5000 kg, 90-330 mm

Art no. 5019

SVEROs beam clamp 5000 kg. Capable of heavy lifting in many different situations.

2 495 SEK

Excl. VAT
Order item
–
+
Send quotation request
Manual
Print
If you have questions Contact us

Description

    • adjustable for IPE, HEA, HEB or INP beams
    • easy and safe assembly, no tools needed
    • low head-room due to built-in suspension bolt
    • powder coated
    • firm, secure grip on the lower flange, both vertically and horizontally
    • used as an attachment point for chain hoists and pulling devices, etc
    • working temperature -10° C up to +50° C
    • test and CE certificates and manual included

Specifications

Art no.
5019
WLL
5000
Beam width mm
90-330
Test load
7500
Safety factor
4:1
Weight, net
11.6
Marking
CE, WLL, BEAM WIDTH
Standard
SS-EN 13155
Brand
SVERO
