Start / Products / Beam clamps / Beam clamps / Beam Clamp 1000 kg, 80-240 mm /

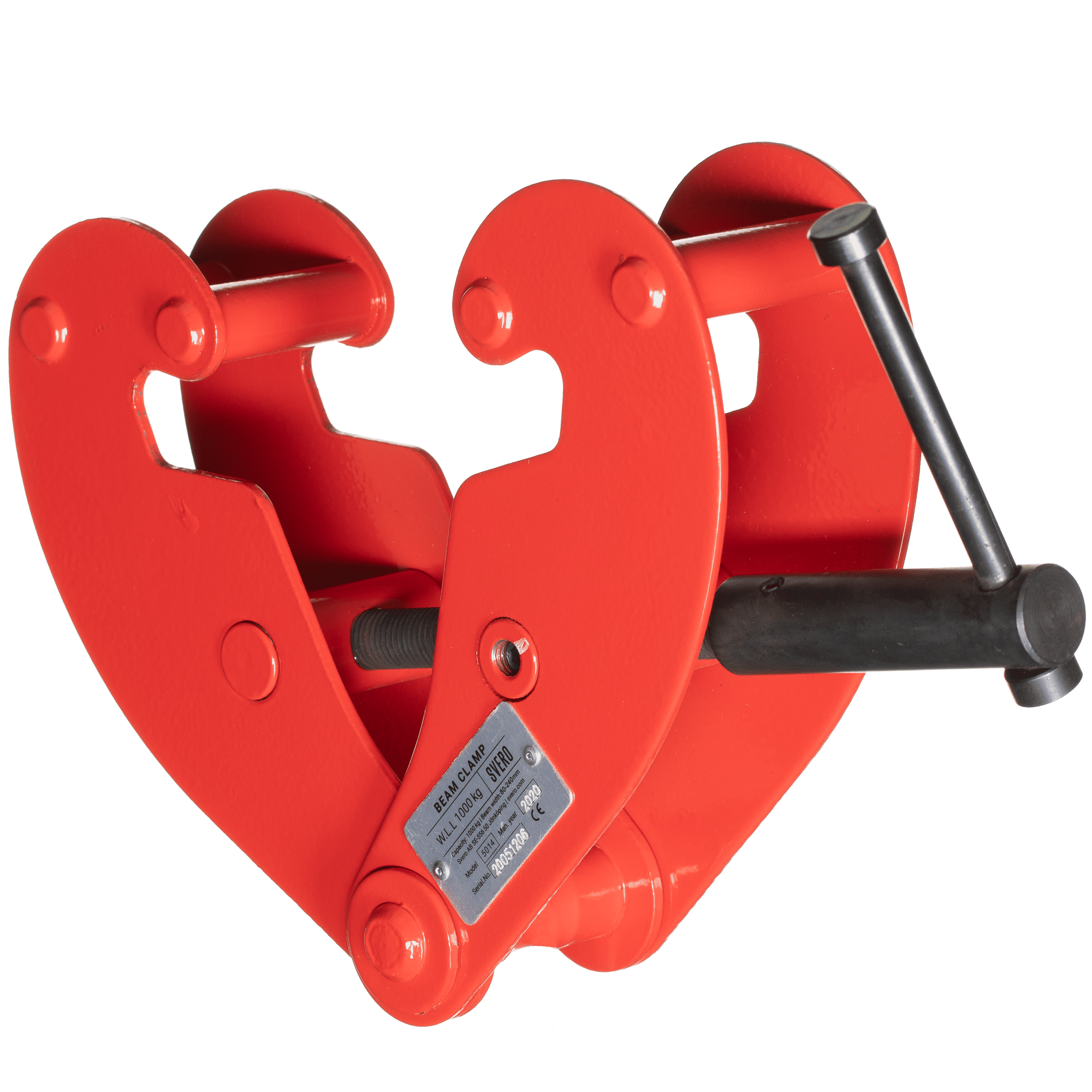

Beam Clamp 1000 kg, 80-240 mm-image-1 Beam Clamp 1000 kg, 80-240 mm-image-2
SVERO

Beam Clamp 1000 kg, 80-240 mm

Art no. 5014

SVEROs smallest beam clamp, but still fits in many situations.

1 074 SEK

Excl. VAT
In stock
–
+
Send quotation request
Manual
Print
If you have questions Contact us

Description

    • adjustable for IPE, HEA, HEB or INP beams
    • easy and safe assembly, no tools needed
    • low head-room due to built-in suspension bolt
    • powder coated
    • firm, secure grip on the lower flange, both vertically and horizontally
    • used as an attachment point for chain hoists and pulling devices, etc
    • working temperature -10° C up to +50° C
    • test and CE certificates and manual included

Specifications

Art no.
5014
WLL
1000
Beam width mm
80-240
Test load
1500
Safety factor
4:1
Weight, net
4.2
Marking
CE, WLL, BEAM WIDTH
Standard
SS-EN 13155
Brand
SVERO
