SVERO
Art no. 5023

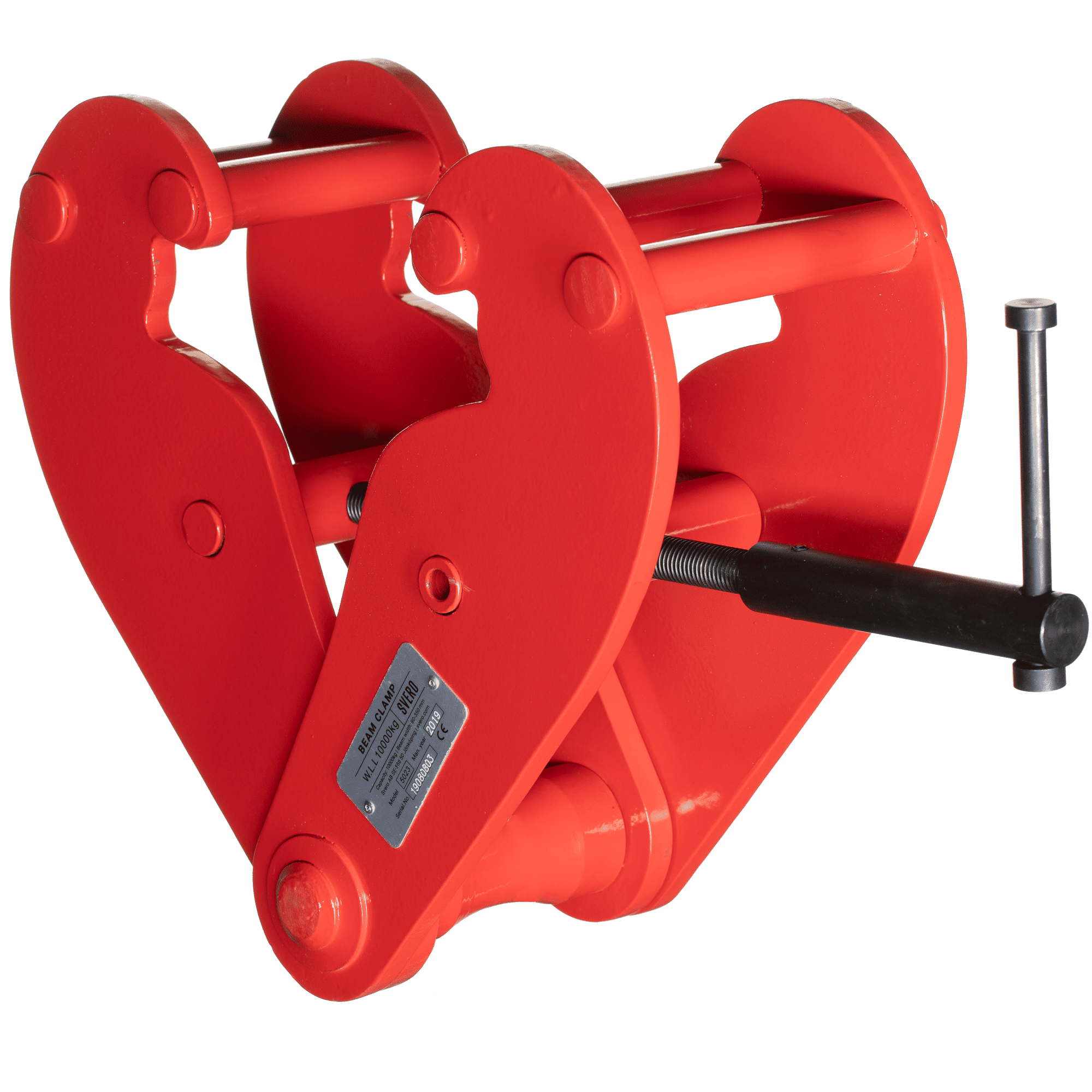

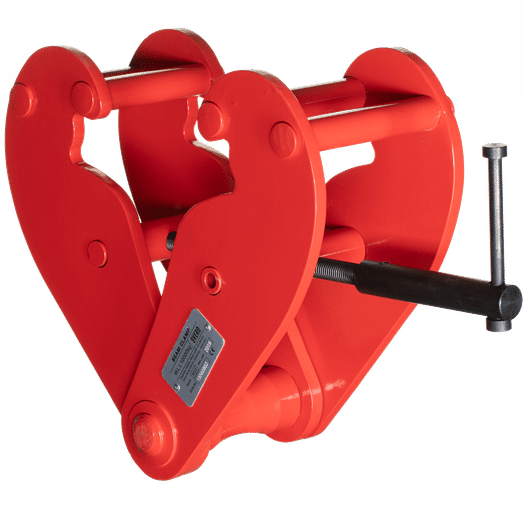

Beam Clamp 10 000 kg, 90-350 mm
SVEROs beam clamp 10000 kg. Can handle really heavy lifting in many different situations.
4 227 SEK
Excl. VATIn stock
–
+
Send quotation request
Print If you have questions Contact us
Description
- adjustable for IPE, HEA, HEB or INP beams
- easy and safe assembly, no tools needed
- low head-room due to built-in suspension bolt
- powder coated
- firm, secure grip on the lower flange, both vertically and horizontally
- used as an attachment point for chain hoists and pulling devices, etc
- working temperature -10° C up to +50° C
- test and CE certificates and manual included
Specifications
Art no.
5023
WLL
10000
Beam width mm
90-350
Test load
15000
Safety factor
4:1
Weight, net
16
Marking
CE, WLL, BEAM WIDTH
Standard
SS-EN 13155
Brand
SVERO
